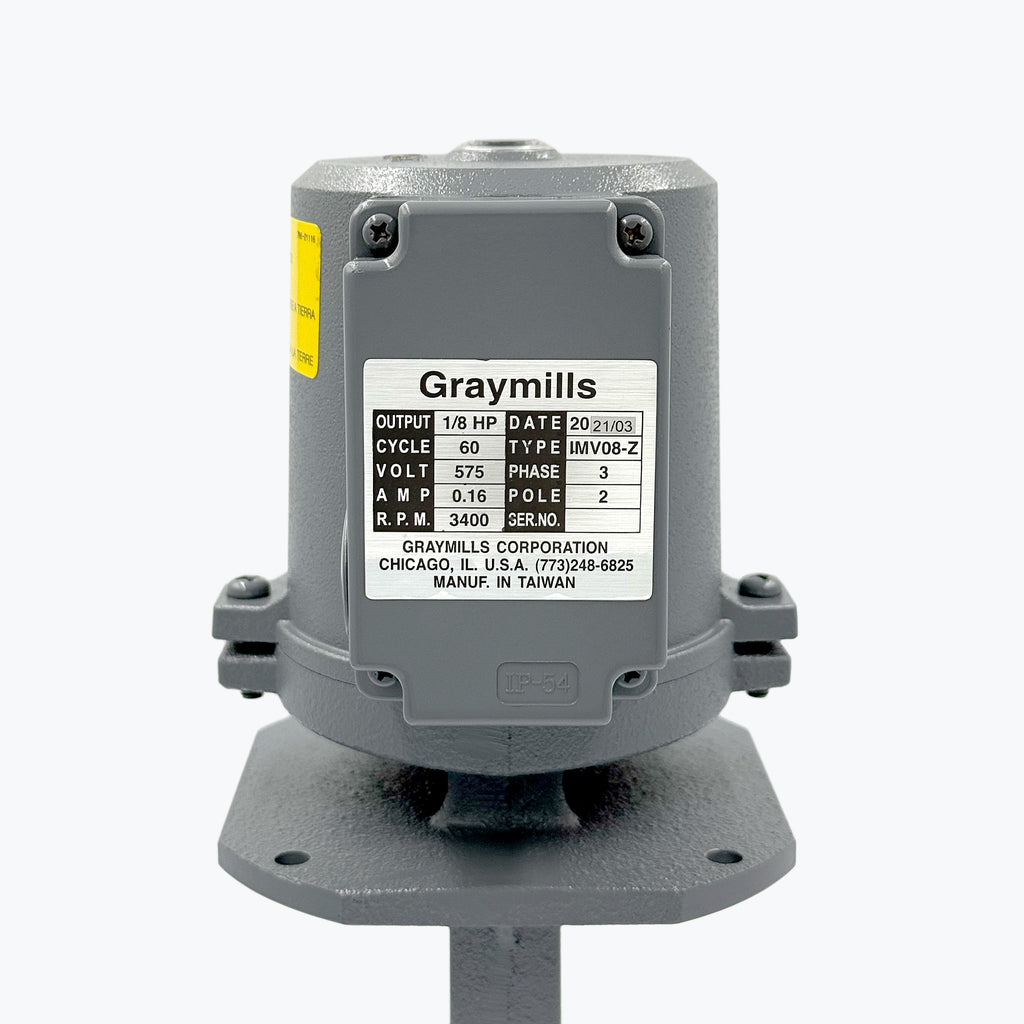

The Graymills IMV08‑Z is a high-voltage, 1/8 HP vertical immersion pump built for industrial coolant and recirculation systems. Designed to run on 575 V, 3‑phase power, it delivers reliable performance at approximately 3,400 RPM, with a maximum flow of around 11 GPM and a total dynamic head of roughly 14 ft (~6 psi).

Constructed with cast-iron housing, a carbon‑steel shaft, and a plastic impeller, the IMV08‑Z is rugged and maintenance-friendly. Like other IMV series pumps, it’s optimized for fluids containing fine particles and can handle viscosities up to 500 SSU.

Typical Applications

• Machine Tool Coolant Systems: Circulating flood coolant for lathes, mills, and machining centers.
• Parts Washers / Wash Tanks: Used in cleaning systems where you want to recirculate wash solution or degreaser.
• Tank-Based Fluid Systems: Ideal for use in closed tanks or sumps, especially paired with Graymills’ tank systems.
